Stuck RS Brake Brass Fitting

5 Posts
2 Users
1 Reactions
639 Views
Terry South
(@terry-south)
Posts: 6
Active Member
Topic starter


What's the best way to remove this stuck brass brake fitting without damaging the caliper? The PO has stripped it completely round and I have nothing that will securely grab the fitting and turn it. I tried heating the caliper with my heat gun to loosen it but it did not help. Any ideas?


Posted : 06/09/2022 05:01
Richard W
(@wobbly)
Posts: 2597
Member


• First, set the caliper on a stable wooden surface. Then smack the nipple directly on the end with a large hammer. That will shock the threads into breaking free.

• Secondly, heat the body of the caliper around the nipple (not the nipple itself). Use a small torch, such as propane, that allows you to focus the heat. The body is aluminum alloy and it will expand more rapidly and break free.



Causes and Prevention

This situation is created when the wrong wrench is used to bleed the caliper. DOT4 brake fluid always creates corrosion, so the repairman should always expect a stuck nipple from the outset. To loosen these a tight-fitting 6-point box-end wrench must be used. The jaws of an open-end wrench will simply spread and loose contact with the "flats". A 12-point box-end doesn't have enough contact area, it must be a 6-point !!

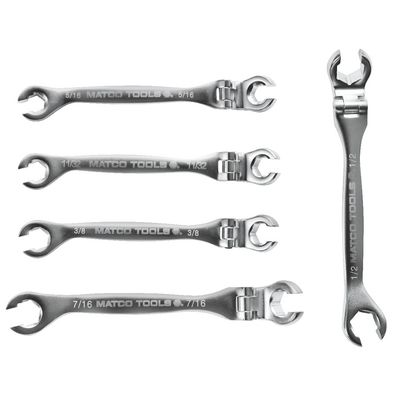

Automotive brake wrenches for steel lines

There are special automotive "brake wrenches" available with a slot to step over rigid brake lines. Even though they are slotted, they are still 6-point box-end. The Airhead doesn't deal with a lot of steel lines, especially when when it comes to "bleeding", so a long shank 6-point box-end works great. An offset neck can also be useful.

Offset brake wrenches for bleeding



Rounded or distorted bleed nipples should always be replaced while they are still able to be grasped and removed.

Hope this helps



This post was modified 3 years ago 2 times by Richard W

Owning an old Airhead is easy.
Keeping an old Airhead running great is the true test.


Posted : 06/10/2022 03:23
Terry South
(@terry-south)
Posts: 6
Active Member
Topic starter


@wobbly thanks. I’ll give that a try.


Posted : 06/10/2022 08:41
Terry South
(@terry-south)
Posts: 6
Active Member
Topic starter


@wobbly Turns out this didn't work. I could get no movement at all from the brass fitting, so I took it to my local brake shop. They had to cut it partially off and weld a nut to it, after which they were able to get it out.


Posted : 06/21/2022 13:28
Richard W
(@wobbly)
Posts: 2597
Member


Glad you were able to salvage the caliper. Your issue was a great ad for using 6-point wrenches.

Owning an old Airhead is easy.
Keeping an old Airhead running great is the true test.


Posted : 06/22/2022 04:07
