Any luck straightening fairing bracket on RS???

7 Posts
3 Users
0 Reactions
397 Views
William Bartlett
(@18631)
Posts: 4
Active Member
Topic starter

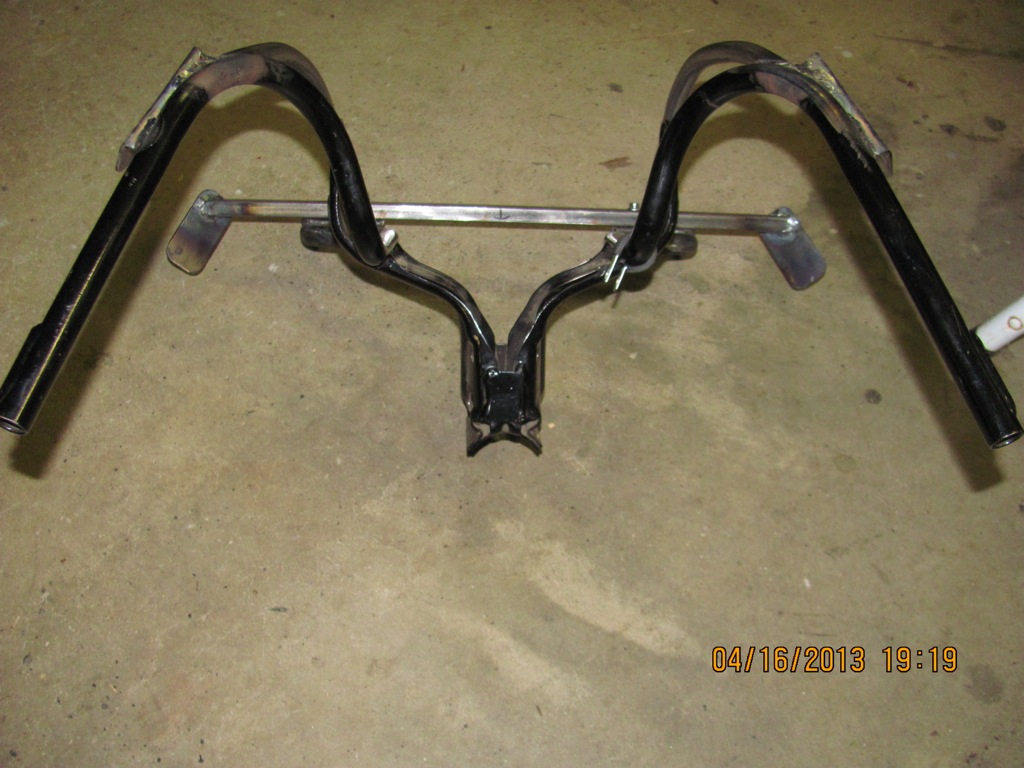

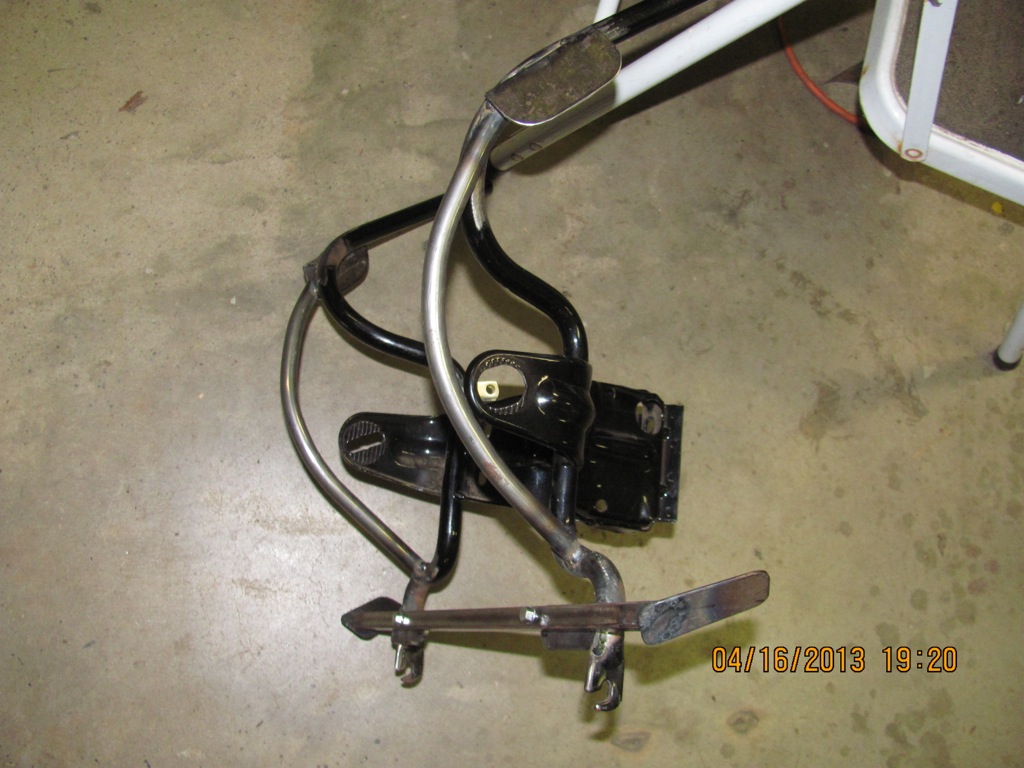

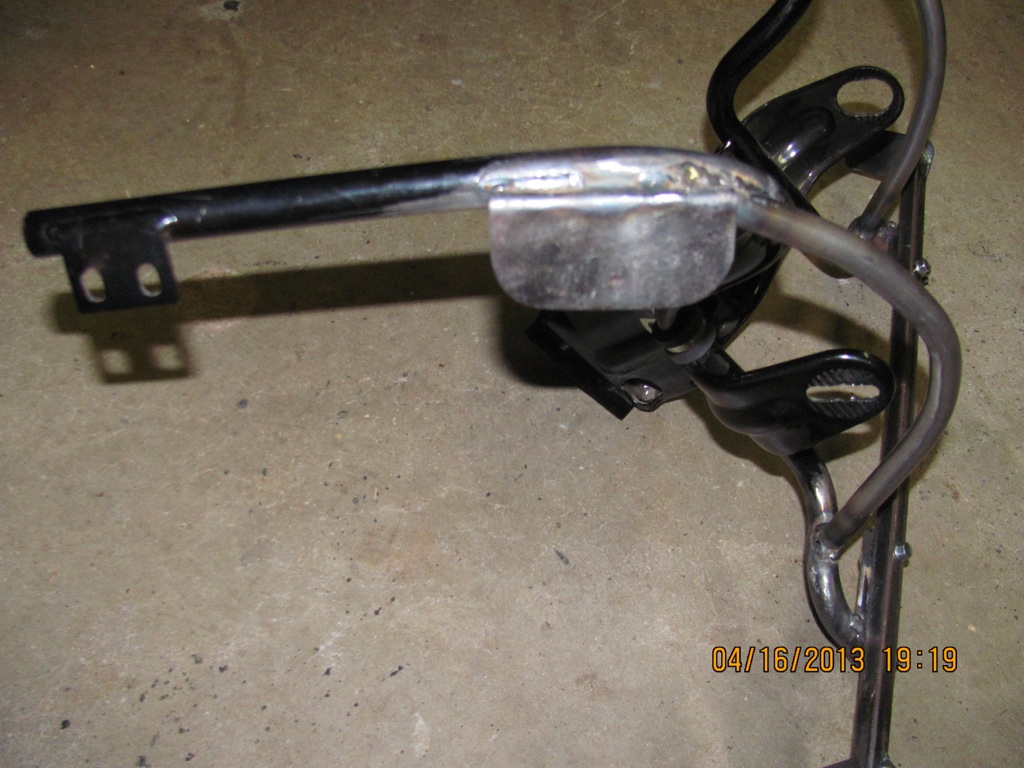

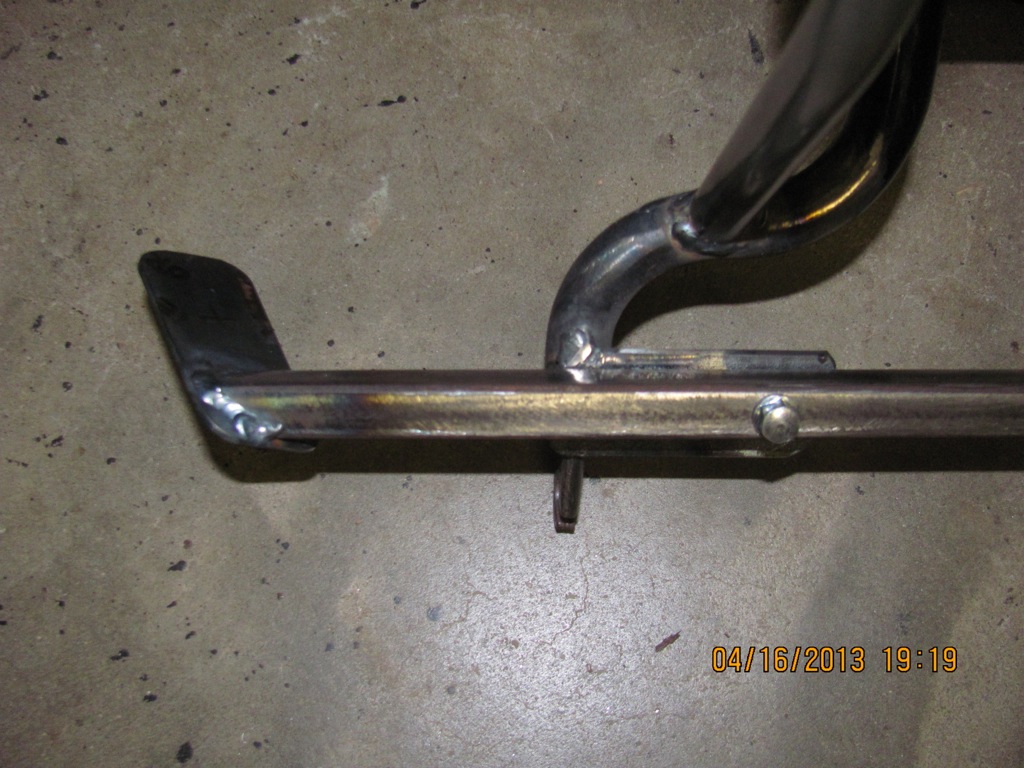

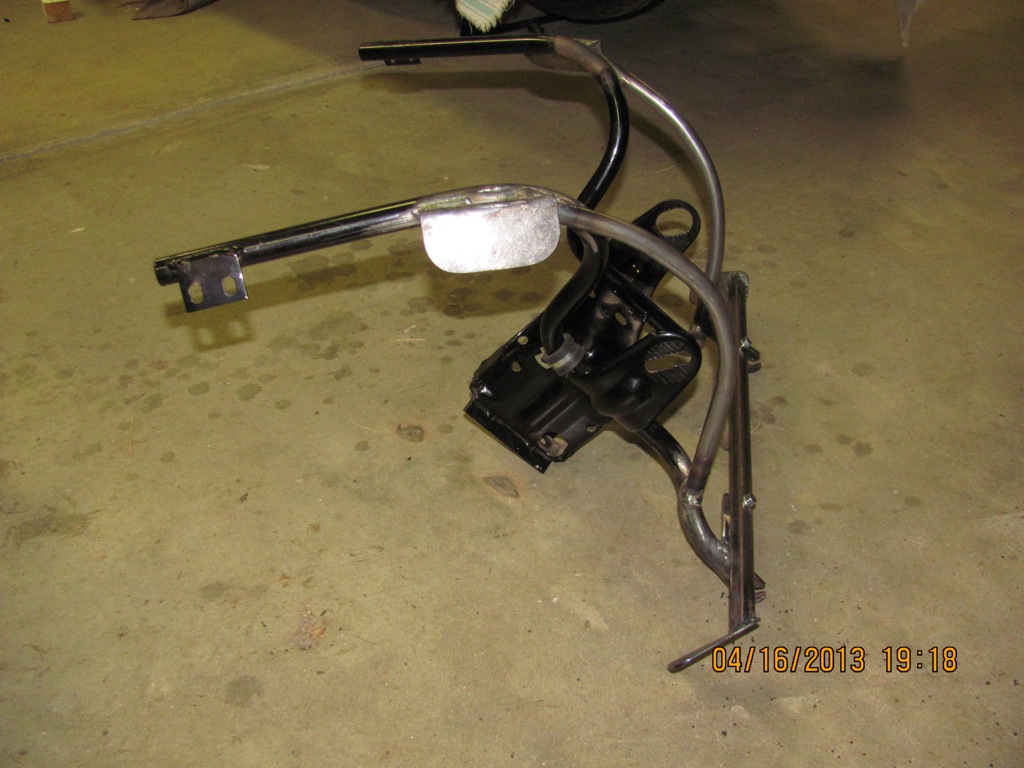

I bought an RS Motorsport here in Airheads (Thanks, Tom). I took the fairing off for some repairs. Pictures to come. However, I found out that the fairing mounting bracket, pictured below, is bent. Not mangled, but not as it should be.

I am thinking I can bend it back into position using the fairing and mirror mounting holes as my guide, but it's hard to tell exactly what's bent. Anybody done this with some success?

Thanks,

Bill






Posted : 10/13/2023 16:12
Richard W
(@wobbly)
Posts: 2597
Member


I've owned 3 or 4 of these brackets (on and off bikes) and IME, after 50 years they are all sort of tweaked. You cannot lay these on a surface plate and expect them not to rock. But that doesn't mean that your fairing won't sit straight.

As you mount the assembled "upper", simply push the 4 arms of the bracket back and forth until the fairing sits straight.

I may have a spare if you need one. But like I said, it will be "straight", but not "perfect".

This post was modified 1 year ago by Richard W

Owning an old Airhead is easy.
Keeping an old Airhead running great is the true test.


Posted : 10/14/2023 04:20
Steven Rankin
(@14724)
Posts: 228
Reputable Member


I would think one could use straight edges, perhaps a carpenter's 90 angle rule, with a bit of messing to get things perfect.

Not knowing how far off yours is, I can't give a definite answer as to bending it back or bending it into shape.  The arms are not terribly hard to bend a little bit.

My idea for now would be put the bike on the center stand, use the two main bolts and bolt the bracket to the steering head frame, and use a bubble level and tape measure to square things up and level.  The bracket is symmetric so from the center point of it, you can perhaps measure out to the tips.

LOL, have fun, good luck.  St.

Beware! I do not suffer fools gladly! St.


Posted : 10/15/2023 05:04
Steven Rankin
(@14724)
Posts: 228
Reputable Member


One thing, move the bracket, the fiberglass fairing is less forgiving of misaligned brackets.  I have seen the inserts in the fairing pull out due to bent brackets.  The force of air on the fairing is fairly significant.   Get the bracket as darned close to perfect as you can, I guess I am writing.  Good luck. St.

Beware! I do not suffer fools gladly! St.


Posted : 10/15/2023 05:12
William Bartlett
(@18631)
Posts: 4
Active Member
Topic starter


Hey guys:

I did some fiddling with it and was able to get it even side to side using height from floor and width from centerline as my guide. Not sure yet if that mates up “perfectly” with the fairing. I just had some fairing repairs done and haven’t had the time yet to reinstall it. I’ll report back when I do.

—bb


Posted : 10/16/2023 06:06
Steven Rankin
(@14724)
Posts: 228
Reputable Member


As long as you are not real far off of fitting, you should not have a problem.  Good luck and let us know how you make out. St.

Beware! I do not suffer fools gladly! St.


Posted : 10/16/2023 14:48
Richard W
(@wobbly)
Posts: 2597
Member


One might think that the fairing bracket would be perfect when the fairing sits perfectly, right? After owning 3 or 4 RS bikes, that has not been my experience. My thinking is... the steel bracket is far more forgiving than the plastic/fiberglass fairing. Set the fairing on the bike and make all the connections to the adjoining plastic parts, THEN bend the steel bracket to support the fairing in the position/shape that the very fragile fairing wants to assume.

Plumb bobs, bubble levels, measuring tapes, surface plates, etc... those are tools for straightening frames, and getting the frame and swing arm alignment correct. But the plastic is the "she who must be obeyed" when it comes to fairing support.

Just my 2 cents.

Owning an old Airhead is easy.
Keeping an old Airhead running great is the true test.


Posted : 10/11/2024 08:06
